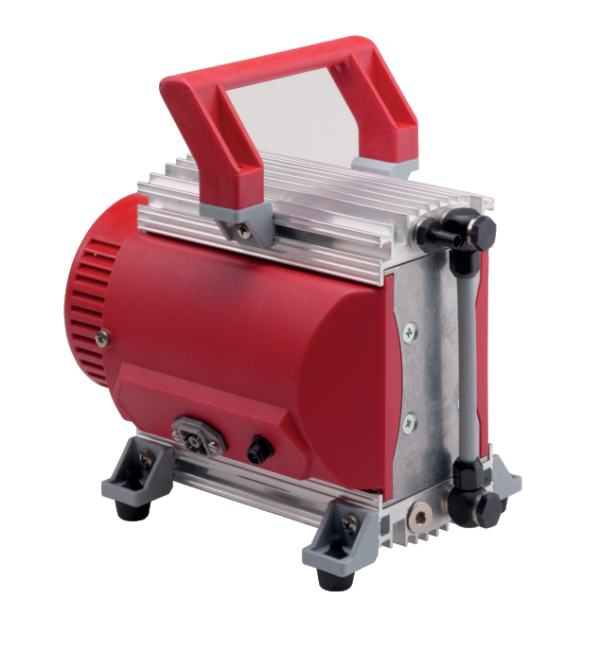

Pfeiffer MVP 030-3 DC Diaphragm Pump
Original price was: $3,617.86.$3,256.07Current price is: $3,256.07.
Pfeiffer MVP 030-3 DC Diaphragm Pump
Dry and oil-free diaphragm pumps with a pumping speed of up to 1.8 m3/h:
Product description
- High-performance diaphragm pump with a pumping speed of up to 1.8 m3/h
- For 24 V DC direct voltage supply
- Interval operation and rotation speed control
- Optimal process adaptation
- Ideal for applications where a dry and oil-free vacuum is required
- Description
- Additional information
- Brand
- Technical Specs
- Downloads
- Videos
Description
Pfeiffer MVP 030-3 DC Diaphragm Pump
Dry and oil-free diaphragm pumps with a pumping speed of up to 1.8 m3/h:
Product description
- High-performance diaphragm pump with a pumping speed of up to 1.8 m3/h
- For 24 V DC direct voltage supply
- Interval operation and rotation speed control
- Optimal process adaptation
- Ideal for applications where a dry and oil-free vacuum is required
Additional information
| Weight | 9.5 lbs |
|---|
Brand
Pfeiffer
Pfeiffer Vacuum Technology AG is a German manufacturer of vacuum pumps. It is headquartered in Aßlar in Germany with 70% of the total production catering to the export market.
| Ambient temperature | 12 °C | 53.6 °F | 285 K |
| Cooling method, standard | Convection cooled |
| Dimensions (L x W x H) | 223 mm | 8.78 inch |
| Emission sound pressure level without gas ballast or purge | ≤ 48 dB(A) |
| Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Flange (in) | G 1/8″ + hose wave DN 6 |
| Flange (out) | G 1/8″ + silencer |
| Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Leak rate | ≤ 1 · 10-2 Pa m³/s |
| Operating altitude, max. | 2000 m |
| Protection category | IP20 |
| Pumping speed | 1.8 m³/h |
| Rotation speed | 300 rpm | 300 min-1 |
| Switch New | No |
| Temperature: Storage | -10 °C | -50 °F | -283 K |
| Ultimate pressure with gas ballast | 3 hPa | 2.25 Torr | 3 mbar |
| Ultimate pressure without gas ballast | 2.5 hPa | 1.88 Torr | 2.5 mbar |
| Voltage: Range | ±10 % |
| Weight | 4.3 kg | 9.48 lb |
