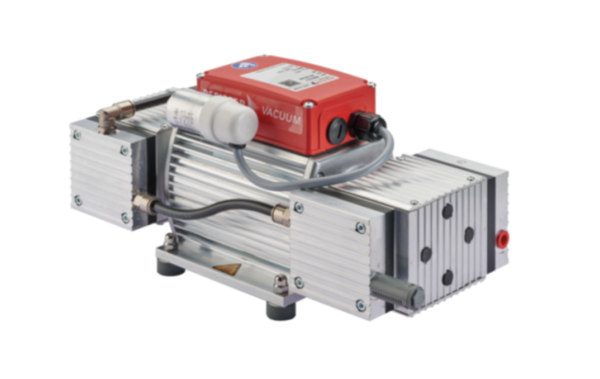

Pfeiffer MVP 015-4 Diaphragm Pump
Original price was: $3,463.69.$3,117.32Current price is: $3,117.32.
Pfeiffer MVP 015-4 Diaphragm Pump
Dry and oil-free diaphragm pumps with a pumping speed of up to 0.7 m3/h:
Product description
- Absolutely oil-free
- Pumping of dry an noncorrosive gases
- Long service life of diaphragms and valves
- Very quiet
- As a backing pump for turbopumps and stand-alone version applicable
- Integrated gas ballast valve extends the field of applications
- High-performance diaphragm pump with a pumping speed of 0.7 m3/h
- For mains voltage: 120 V (+ 5 % / – 10 %) 60 Hz
- Ideal for applications where a dry and oil-free vacuum is required
- The excellent ultimate pressure offers an ideal combination with Pfeiffer Vacuum turbopumps
- Description
- Additional information
- Brand
- Technical Specs
- Downloads
- Videos
Description
Pfeiffer MVP 015-4 Diaphragm Pump
Dry and oil-free diaphragm pumps with a pumping speed of up to 0.7 m3/h:
Product description
- Absolutely oil-free
- Pumping of dry an noncorrosive gases
- Long service life of diaphragms and valves
- Very quiet
- As a backing pump for turbopumps and stand-alone version applicable
- Integrated gas ballast valve extends the field of applications
- High-performance diaphragm pump with a pumping speed of 0.7 m3/h
- For mains voltage: 120 V (+ 5 % / – 10 %) 60 Hz
- Ideal for applications where a dry and oil-free vacuum is required
- The excellent ultimate pressure offers an ideal combination with Pfeiffer Vacuum turbopumps
Additional information
| Weight | 16.5 lbs |
|---|
Brand
Pfeiffer
Pfeiffer Vacuum Technology AG is a German manufacturer of vacuum pumps. It is headquartered in Aßlar in Germany with 70% of the total production catering to the export market.
| Ambient temperature | 12 °C | 53.6 °F | 285 K |
| Cooling method, standard | Air |
| Emission sound pressure level without gas ballast or purge | ≤ 52 dB(A) |
| Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Flange (in) | DN 16 ISO-KF; G 1/8″ |
| Flange (out) | G 1/8″ + silencer |
| Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Leak rate | ≤ 5 · 10-4 Pa m³/s |
| Mains requirement: voltage (range) | +5/-10 % |
| Mains requirement: voltage 60 Hz | 120 V |
| Operating altitude, max. | 2000 m |
| Protection category | IP54 |

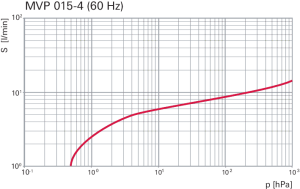

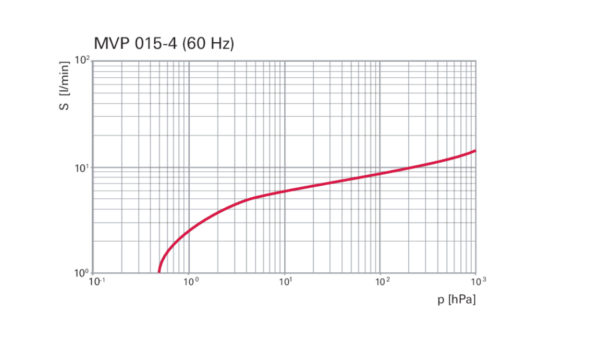

| Pumping speed at 60 Hz | 0.6 m³/h |
| Rotation speed at 60 Hz | 1,800 rpm | 1,800 min-1 |
| Switch New | No |
| Temperature: Storage | 5 °C | 41 °F | 278 K |
| Ultimate pressure without gas ballast | 5 · 10-1 hPa | 3.75 · 10-1Torr | 5 · 10-1 mbar |
| Weight | 7.5 kg | 16.53 lb |
