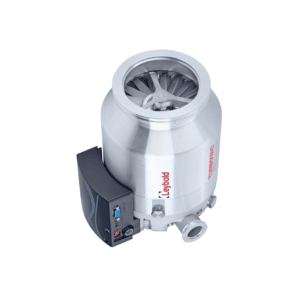

Leybold Turbovac 250 i/iX Turbo Pump
Starting at: $12,517.59 Starting at: $9,388.19
Leybold Turbovac 250 i/iX Turbo Pump
Designed to offer the best performance, the TURBOVAC i/iX series has a higher pumping speed and delivers lower initial and operating costs. With its exceptional features such as light gas pumping speeds of up to 60% above present reference products, and compression values that are approximately 100x higher than previous generation products, it is the right choice for all your applications.
The Leybold TURBOVAC i/iX turbomolecular pumps are highly versatile and are therefore suited for a wide range of applications in Research & Development, Analytical, Life Sciences and
Industrial sectors. The pump range consists of a large number of variants and accessories meeting the requirements of your process, aimed at providing the best possible performance.
Turbo pump only.
Inquiry for lead time.
- Description
- Additional information
- Brand
- Technical Specs
- Downloads
- Dimensions
- Pump Curve
Description
Leybold Turbovac 250 i/iX Turbo Pump
Designed to offer the best performance, the TURBOVAC i/iX series has a higher pumping speed and delivers lower initial and operating costs. With its exceptional features such as light gas pumping speeds of up to 60% above present reference products, and compression values that are approximately 100x higher than previous generation products, it is the right choice for all your applications.
The Leybold TURBOVAC i/iX turbomolecular pumps are highly versatile and are therefore suited for a wide range of applications in Research & Development, Analytical, Life Sciences and
Industrial sectors. The pump range consists of a large number of variants and accessories meeting the requirements of your process, aimed at providing the best possible performance.
Turbo pump only.
Inquiry for lead time.
Additional information
| Weight | N/A |
|---|---|
| Sizes | CF6.0, LF100 |
Brand
Leybold
| Characteristic | Units | 90 i/iX |
| Inlet Flange | DN | 100 ISO-K / CF |
| Exhaust Flange | DN | KF16 |
| Pumping Speed | l/s | |
| N2 | mbar-l/s | 225 |
| Ar | 210 | |
| He | 250 | |
| H2 | 210 | |
| Gas Throughput | ||
| N2 | mbar-l/s | 6 |
| Ar | 3 | |
| He | 6 | |
| H2 | >10 | |
| Compression Ratio | ||
| N2 | mbar-l/s | 1.00E+11 |
| Ar | 1.00E+11 | |
| He | 1.00E+08 | |
| H2 | 2.00E+07 | |
| Ultimate Pressure (with 2 stage oil-sealed rotary vane pump | mbar | <E-8 / <5E-10 |
| Max permissible fore-vacuum pressure for N2 | mbar | 14 |
| Operating Speed | rpm | 72000 |
| Cooling Standard | Convection | |
| Cooling Optional | Air or Water | |
| Weight ISO-K/CF | lbs | 9.9 / 15.6 |
| Supply Voltage | 24/48V DC +/- 10% | |
| Max. Current Consumption | 10A at 24 VDC | |
| Max. Power Consumption | watts | 240 |
| Interfaces | i Versions | RS 485, uSB, 15-pin digital I/O (additional on request) |
| iX Versions | Optional RS 485, RS 232, Profibus, (additional on request) |
