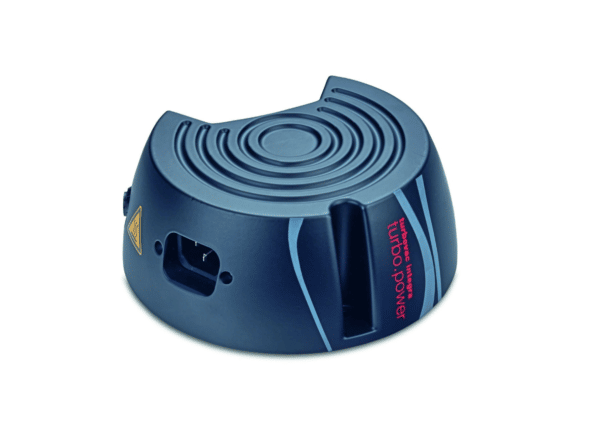

Leybold Turbo Power Integra
Original price was: $1,305.01.$1,239.76Current price is: $1,239.76.
Leybold Turbo Power Integra
The Leybold TURBO.POWER Integra is a 288-Watt power supply providing 24 VDC output at 10 Amps and is designed to power the TURBOVAC i-series pump models: 90i, 250i, 350i, and 450i. It supplies 24 VDC clean fused power from a 110-240 VAC input source (power cable part number P108678 is also required). Hardware is included to mount the TURBO.POWER integra below the turbo pump along with a short 0.3-meter cable to connect the undermounted power supply to the pump.
Inquire for lead time.
- Description
- Additional information
- Brand
- Technical Specs
- Dimensions
- Downloads
Description
Leybold Turbo Power Integra
The Leybold TURBO.POWER Integra is a 288-Watt power supply providing 24 VDC output at 10 Amps and is designed to power the TURBOVAC i-series pump models: 90i, 250i, 350i, and 450i. It supplies 24 VDC clean fused power from a 110-240 VAC input source (power cable part number P108678 is also required). Hardware is included to mount the TURBO.POWER integra below the turbo pump along with a short 0.3-meter cable to connect the undermounted power supply to the pump.
Inquire for lead time.
Additional information
| Weight | 4.5 lbs |
|---|
Brand
Leybold
| Input | |
| Mains Voltage | 100-240 VAC, 50/60Hz |
| Max. Power Consumption | 403 VA |
| Efficiency | 85% |
| Leakage Current | 2mA / 230 VDC |
| AC fusing | 5A, slow-blow |
| Output | |
| Nominal DC Output Voltage | 24V +/-5% (SELV) |
| Max. DC Continuous Current | 8A |
| DC Peak Current (60s) | 10A |
| Max. Rate Power Output | 252W |
| Other Data | |
| Weight | 2.6 lbs |
| Protection Type (EN 60529) | IP 40 |
| Ambient Temp | 5-45 C |
| Relative Air Humidity | 5 to 85% non condensing |
