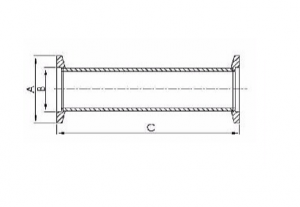

KF Full Nipples Dimensions
KF Full Nipples Dimensions

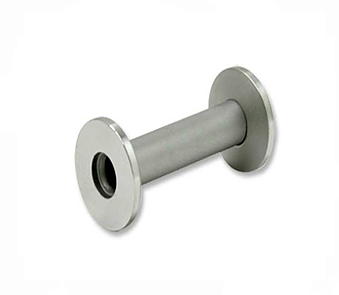

KF Full Nipples

KF Full Nipples Long KF Full Nipples, Long

Starting at: $63.50 Starting at: $62.23

KF Full Nipples are made from SS304. They are rated to 200 Celsius and 1E-8 Torr. They utilize KF clamps and an elastomeric seal.

UPC: SKU: N/A Category: Tags: , , , , , , , ,
Brand:High Vac Depot
Original price was: $63.50.Current price is: $62.23.
SKU: KF-FN-10
Original price was: $66.04.Current price is: $64.72.
SKU: KF-FN-16
Original price was: $76.20.Current price is: $74.68.
SKU: KF-FN-25
Original price was: $95.25.Current price is: $93.35.
SKU: KF-FN-40
Original price was: $133.35.Current price is: $130.68.
SKU: KF-FN-50

Description

KF Full Nipples are made from SS304. They are rated to 200 Celsius and 1E-8 Torr. They utilize KF clamps and an elastomeric seal.

Additional information

Weight N/A
KF Full Nipple Sizes

, , , ,

Brand

High Vac Depot

High Vac Depot provides practical vacuum solutions for your industrial or research process. Our goal is to provide a large selection of well-known vacuum products that suit your technical needs and budget.

Catalog Part # Size A B C
in in in
[mm] [mm] [mm]
KF-FN-10 KF10-2.50” 1.18 0.48 2.5
[30] [12.2] [63.5]
KF-FN-16 KF16-2.30” 1.18 0.68 2.3
[30] [17.2] [58.4]
KF-FN-25 KF25-4.00” 1.57 1.03 4.06
[40] [26.2] [103.1]
KF-FN-40 KF40-4.80” 2.17 1.62 4.8
[55] [41.2] [121.9]
KF-FN-50 KF50-6.30” 2.95 2.06 6.3
[75] [52.2] [160.0]
