KF 4-Way Crosses
Starting at: $120.65 Starting at: $118.24

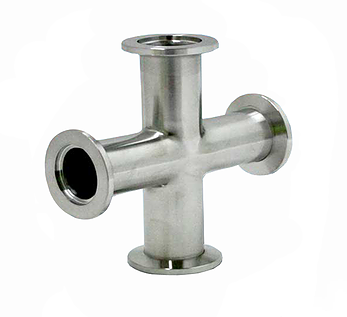

KF 4-Way Crosses are made from SS304L and are used to adapt from varying sizes of KF fittings. They are rated to 200 Celsius and 1E-8 Torr. They utilize KF clamps and an elastomeric seal.
- Description
- Additional information
- Brand
- Dimensions
Description
KF 4-Way Crosses are made from SS304L and are used to adapt from varying sizes of KF fittings. They are rated to 200 Celsius and 1E-8 Torr. They utilize KF clamps and an elastomeric seal.
Additional information
| Weight | N/A |
|---|---|
| KF Tees Sizes |
Brand
High Vac Depot
High Vac Depot provides practical vacuum solutions for your industrial or research process. Our goal is to provide a large selection of well-known vacuum products that suit your technical needs and budget.
| Catalog Part # | Size | A | B |
| in | in | ||
| [mm] | [mm] | ||
| KF-4C-10 | KF10 | 2.5 | 1.25 |
| [63.5] | [31.75] | ||
| KF-4C-16 | KF16 | 2.3 | 1.15 |
| [58.4] | [29.20] | ||
| KF-4C-16-H | KF16-H | 3.15 | 1.57 |
| [80.0] | [40.00] | ||
| KF-4C-25 | KF25 | 3.94 | 1.97 |
| [100.0] | [50.00] | ||
| KF-4C-25-H | KF25-H | 4.05 | 2.02 |
| [102.8] | [51.40] | ||
| KF-4C-40 | KF40 | 4.8 | 2.4 |
| [122.0] | [61.00] | ||
| KF-4C-40-H | KF40-H | 5.12 | 2.56 |
| [130.0] | [65.00] | ||
| KF-4C-50 | KF50 | 5.51 | 2.76 |
| [140.0] | [70.00] | ||
| KF-4C-50-H | KF50-H | 6.3 | 3.15 |
| [160.0] | [80.00] |
