Edwards XDD1 Diaphragm Pump
Starting at: $3,098.50 Starting at: $2,588.51
Edwards XDD1 Diaphragm Pump
XDD1 diaphragm pumps are used for backing small compound turbomolecular pumps in clean, high vacuum applications, and also designed to be free standing bench top units. A typical ultimate pressure of better than 5 x 10-8 mbar can be achieved when using an XDD1 to back a 70 ls-1 turbomolecular pump.
The 24 V version is designed to provide a complete pumping package using the Edwards Turbo and Instrument Controller (TIC). The d.c. voltage motor runs on 24 V via a 15 pin DIN connector. By selecting the appropriate mode the pump speed can be controlled by the user to provide variable pumping speed. This version is suited to the customer who is building their own a system. The pump is a compact and efficient. Under normal conditions the XDD1 is virtually maintenance free, the lifetime of the diaphragms and valves is typically > 10,000 operating hours, depending on the application.
Please call for lead time.
- Description
- Additional information
- Brand
- Technical Specs
- Dimensions

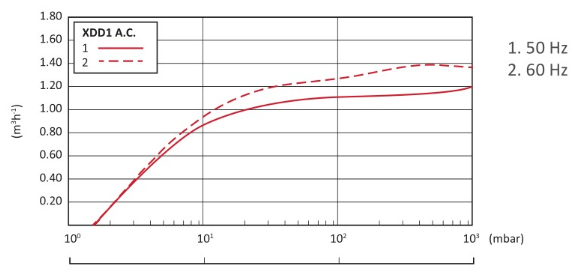

- Pump Curves
- Downloads
- Videos
Description

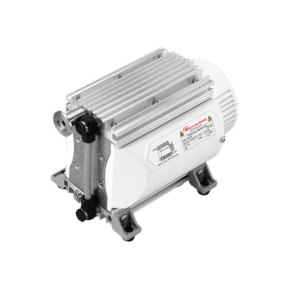

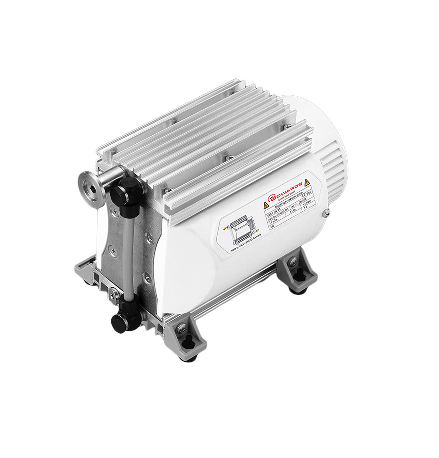

Edwards XDD1 Diaphragm Pump
XDD1 diaphragm pumps are used for backing small compound turbomolecular pumps in clean, high vacuum applications, and also designed to be free standing bench top units. A typical ultimate pressure of better than 5 x 10-8 mbar can be achieved when using an XDD1 to back a 70 ls-1 turbomolecular pump.
The 24 V version is designed to provide a complete pumping package using the Edwards Turbo and Instrument Controller (TIC). The d.c. voltage motor runs on 24 V via a 15 pin DIN connector. By selecting the appropriate mode the pump speed can be controlled by the user to provide variable pumping speed. This version is suited to the customer who is building their own a system. The pump is a compact and efficient. Under normal conditions the XDD1 is virtually maintenance free, the lifetime of the diaphragms and valves is typically > 10,000 operating hours, depending on the application.
Please call for lead time.
Additional information
| Weight | N/A |
|---|---|
| Edwards XDD1 | AC Version – 100-155V / 200-230V / 50-60Hz, DC Version – 24 VDC |
Brand
Edwards
| Pumping Speed | |
| A.C. | |
| 50Hz | 1.2 m3h-1 |
| 60Hz | 1.4 m3h-1 |
| D.C. | |
| 600 rpm | 0.6 m3h-1 |
| 1700 rpm (Factory setting) | 1.4 m3h-1 |
| 2200 rpm | 1.7 m3h-1 |
| Ultimate vacuum (typical) | <2 mbar |
| Ambient temperature limit | 10 to 40 °C |
| Inlet connection | NW16 |
| Exhaust connection | The pump is fitted with a silencer which can be removed and an exhaust line connected with a 1/8 inch BSP fitting |
| Max allowed inlet pressure | 1 bar (abs) |
| Power connector | IEC EN60320 C13 |
| Motor power | |
| A.C. | 80 W |
| D.C. | 64 W |
| Weight | |
| A.C. | 6.5 kg / 14.3 lbs |
| D.C. | 4.1 kg / 9.0 lbs |
