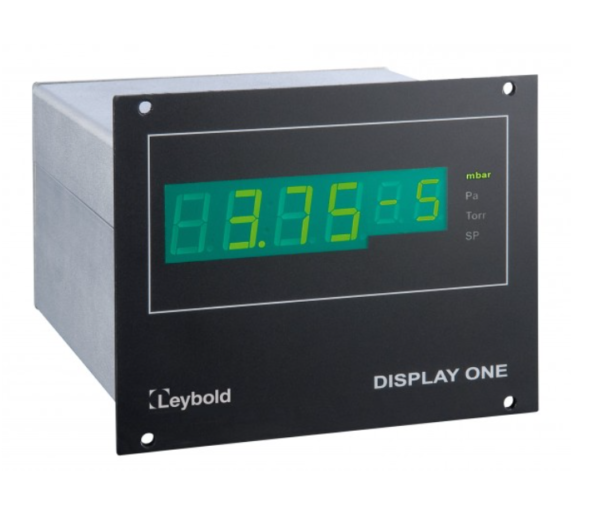

Leybold Display One Gauge Controller
Original price was: $929.06.$905.83Current price is: $905.83.
Leybold Display One Gauge Controller
Mains connection: 100 – 240 V AC, 50/60Hz
Pressure range: 1 x 10-9 mbar – 2000 mbar
Includes EU/US mains cable
- Description
- Additional information
- Brand

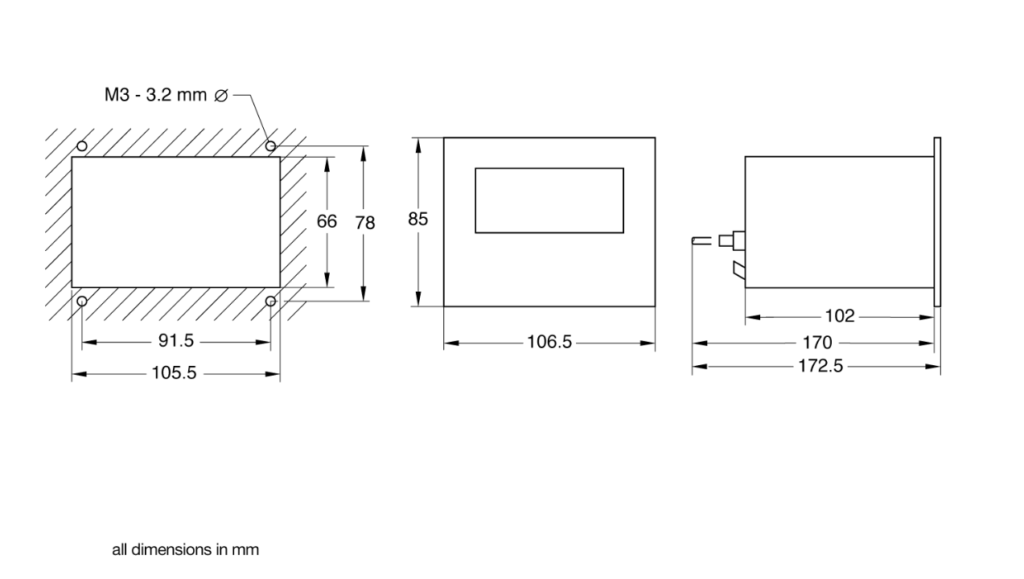

- Dimensions
- Connectable Sensors
Description
Leybold Display One Gauge Controller
Cost-effective, compact single channel display unit for the transmitters from the THERMOVAC series and for PTR 90.
- Power supply voltage for the transmitters
- Four digit mantissa in the range from 5 x 10-9 to 2000 mbar
- Readout selectable between mbar, Torr or Pascal
- 0 to 10 V chart recorder output via plug-in screw terminals
- The switching threshold of the transmitters has been looped through to plug-in terminals
- The transmitter switching threshold settings are displayed
- Compact bench top enclosure (1/4 19″, 2 HU)
- For fitting into 19″, 3 HU racks
- Supply voltage 100 – 240 V
Additional information
| Weight | 3 lbs |
|---|
Brand
Leybold
Leybold GmbH, based in Cologne, is part of the Swedish industry group Atlas Copco. The company’s core competencies are based on the development of components and systems for the generation of vacuum and gas management engineering.
Display One
THERMOVAC
- TTR 90 *)
- TTR 90 S *)
- TTR 91 / TTR 91 N
- TTR 91 S / TTR 91 N S
- TTR 96 S / TTR 96 N S
- TTR 100 *)
- TTR 101 / TTR 101
- TTR 101 S / TTR 101 N S
- TTR 211 *)
- TTR 216 S *)
- TTR 911 / TTR 911 N
- TTR 916 / TTR 916 N
PENNINGVAC
- PTR 90 / PTR 90 N
Linear Pressure Sensor (Display One & Three)
- DU 200
- DU 201
- DU 2000
- DU 2001
- DU 2001 rel.
*) Connecting of older sensors possible
