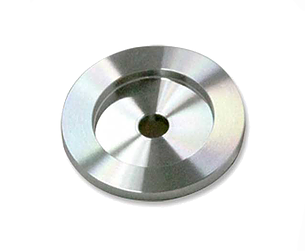

Bored Flange Pic
Bored Flange Pic
KF Bored Flanges - Image 2
KF Bored Flanges - Image 3

KF Bored Flanges

KF Bulkhead Fittings Pic KF Bulkhead Fittings

Starting at: $11.68 Starting at: $11.45

KF Bored Flanges are made from stainless steel 304/L and are pre-bored with either a straight bore or step bore (see “Dimensions” tab below for more information). These are perfect to save you time and money on machining operations and instead, let you get to welding quicker.

UPC: SKU: N/A Categories: , Tags: , , , , , , , , , , , ,
Brand:High Vac Depot
Original price was: $25.56.Current price is: $25.05.
SKU: KF-BF-50x200
Original price was: $25.56.Current price is: $25.05.
SKU: KF-BF-50x150
Original price was: $25.56.Current price is: $25.05.
SKU: KF-BF-50x100
Original price was: $25.56.Current price is: $25.05.
SKU: KF-BF-50x075
Original price was: $25.56.Current price is: $25.05.
SKU: KF-BF-50x050
Original price was: $25.56.Current price is: $25.05.
SKU: KF-BF-50x038
Original price was: $25.56.Current price is: $25.05.
SKU: KF-BF-50x025
Original price was: $18.26.Current price is: $17.89.
SKU: KF-BF-40x150
Original price was: $18.26.Current price is: $17.89.
SKU: KF-BF-40x100
Original price was: $18.26.Current price is: $17.89.
SKU: KF-BF-40x075
Original price was: $18.26.Current price is: $17.89.
SKU: KF-BF-40x050
Original price was: $18.26.Current price is: $17.89.
SKU: KF-BF-40x038
Original price was: $18.26.Current price is: $17.89.
SKU: KF-BF-40x025
Original price was: $13.87.Current price is: $13.60.
SKU: KF-BF-25x100
Original price was: $13.87.Current price is: $13.60.
SKU: KF-BF-25x075
Original price was: $13.87.Current price is: $13.60.
SKU: KF-BF-25x050
Original price was: $13.87.Current price is: $13.60.
SKU: KF-BF-25x038
Original price was: $13.87.Current price is: $13.60.
SKU: KF-BF-25x025
Original price was: $11.68.Current price is: $11.45.
SKU: KF-BF-16x075
Original price was: $11.68.Current price is: $11.45.
SKU: KF-BF-16x050
Original price was: $11.68.Current price is: $11.45.
SKU: KF-BF-16x038
Original price was: $11.68.Current price is: $11.45.
SKU: KF-BF-16x025
Original price was: $11.68.Current price is: $11.45.
SKU: KF-BF-10x038

Description

KF Bored Flanges are made from stainless steel 304/L and are pre-bored with either a straight bore or step bore (see “Dimensions” tab below for more information). These are perfect to save you time and money on machining operations and instead, let you get to welding quicker.

Additional information

Weight N/A
KF Bored Flanges

, , , , , , , , , , , , , , , , , , , , , ,

Brand

High Vac Depot

High Vac Depot provides practical vacuum solutions for your industrial or research process. Our goal is to provide a large selection of well-known vacuum products that suit your technical needs and budget.

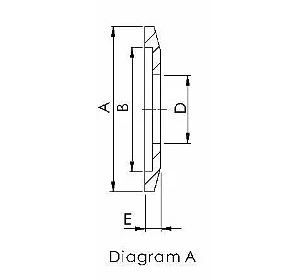

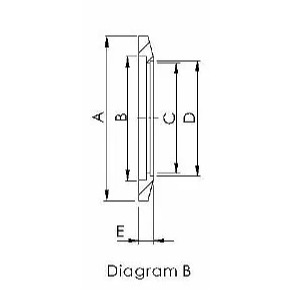

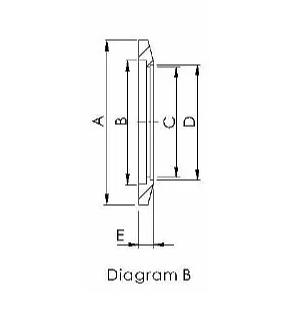

Catalog Part # Size Diagram A B C D E
in in in in in
[mm] [mm] [mm] [mm] [mm]
KF-BF-10×038 KF 10-3/8” A 1.18 0.48 0.38 0.2
[30] [12.2] [9.65] [5.1]
KF-BF-16×025 KF16-1/4” A 1.18 0.68 0.26 0.2
[30] [17.2] [6.50] [5.1]
KF-BF-16×038 KF16-3/8” A 1.18 0.68 0.38 0.2
[30] [17.2] [9.65] [5.1]
KF-BF-16×050 KF16-1/2” B 1.18 0.68 0.4 0.51 0.2
[30] [17.2] [10.16] [12.95] [5.1]
KF-BF-16×075 KF16-3/4” B 1.18 0.68 0.65 0.76 0.17
[30] [17.2] [16.51] [19.30] [4.4]
KF-BF-25×025 KF25-1/4” A 1.57 1.03 0.26 0.2
[40] [26.2] [6.50] [5.1]
KF-BF-25×038 KF25-3/8” A 1.57 1.03 0.38 0.2
[40] [26.2] [9.65] [5.1]
KF-BF-25×050 KF25-1/2” B 1.57 1.03 0.4 0.51 0.2
[40] [26.2] [10.16] [12.95] [5.1]
KF-BF-25×075 KF25-3/4” B 1.57 1.03 0.65 0.76 0.2
[40] [26.2] [16.51] [19.30] [5.1]
KF-BF-25×100 KF25-1.0” B 1.57 1.03 0.9 1.01 0.19
[40] [26.2] [22.88] [25.65] [4.9]
KF-BF-40×025 KF40-1/4” A 2.17 1.62 0.26 0.2
[55] [41.2] [6.50] [5.1]
KF-BF-40×038 KF40-3/8” A 2.17 1.62 0.38 0.2
[55] [41.2] [9.65] [5.1]
KF-BF-40×050 KF40-1/2” B 2.17 1.62 0.4 0.51 0.2
[55] [41.2] [10.16] [12.95] [5.1]
KF-BF-40×075 KF40-3/4” B 2.17 1.62 0.65 0.76 0.2
[55] [41.2] [16.51] [19.30] [5.1]
KF-BF-40×100 KF40-1.0” B 2.17 1.62 0.9 1.01 0.2
[55] [41.2] [22.88] [25.65] [5.1]
KF-BF-40×150 KF40-1.5” B 2.17 1.62 1.4 1.51 0.2
[55] [41.2] [35.58] [38.35] [5.1]
KF-BF-50×025 KF50-1/4” A 2.95 2.06 0.26 0.2
[75] [52.2] [6.50] [5.1]
KF-BF-50×038 KF50-3/8” A 2.95 2.06 0.38 0.2
[75] [52.2] [9.65] [5.1]
KF-BF-50×050 KF50-1/2” B 2.95 2.06 0.4 0.51 0.2
[75] [52.2] [10.16] [12.95] [5.1]
KF-BF-50×075 KF50-3/4” B 2.95 2.06 0.65 0.76 0.2
[75] [52.2] [16.51] [19.30] [5.1]
KF-BF-50×100 KF50-1.0” B 2.95 2.06 0.9 1.01 0.2
[75] [52.2] [22.88] [25.65] [5.1]
KF-BF-50×150 KF50-1.5” B 2.95 2.06 1.4 1.51 0.2
[75] [52.2] [35.58] [38.35] [5.1]
KF-BF-50×200 KF50-2.0” B 2.95 2.06 1.9 2.01 0.2
[75] [52.2] [48.26] [51.05] [5.1]
