InstruTech Super Bee CVM201 Convection Gauge

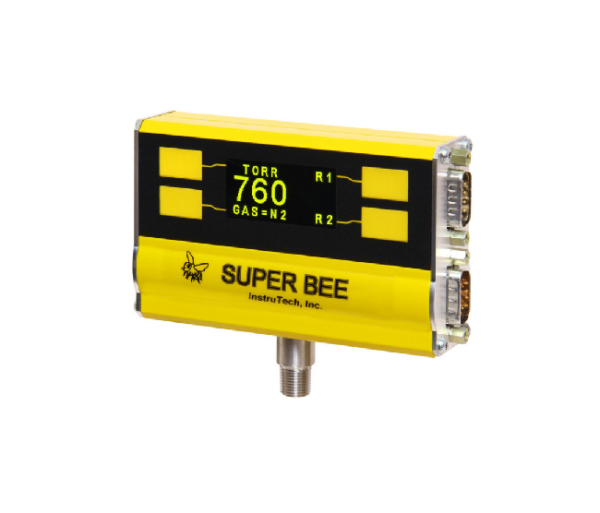

InstruTech Super Bee CVM201 Convection Vacuum Gauge Module

The **InstruTech Super Bee CVM201** is a convection-enhanced Pirani (thermal conductivity) vacuum gauge with a **built-in controller, OLED display, analog outputs, setpoint relays, and RS-232/485 communications**, offering an all-in-one solution for vacuum monitoring ranging from approximately **1 × 10⁻⁴ Torr up to atmospheric pressure (~1000 Torr)**—a vast measurement range rarely matched by standard gauges. :contentReference[oaicite:0]{index=0}

Key Benefits

• Broad pressure range: Covers from ~0.0001 Torr to 1000 Torr in one compact module—extending well beyond traditional Pirani limits. :contentReference[oaicite:1]{index=1}
• Standalone design: Combines sensor, digital display, signal processing, and outputs—no controller needed.
• Mini-Convectron® replacement: Plug-compatible with legacy Granville-Phillips hardware—same connectors, software commands, and pinouts. :contentReference[oaicite:2]{index=2}
• Flexible outputs: Offers dual analog outputs (linear, log-linear, or S-curve), two setpoint relays, and digital RS-232/RS-485 communication. :contentReference[oaicite:3]{index=3}
• Built for uptime: Reduced internal volume and surface area enhance pump-down speed; features like inlet mesh filters and RF shielding improve reliability. :contentReference[oaicite:4]{index=4}

Specifications at a Glance

• Pressure Range: ~1 × 10⁻⁴ to 1000 Torr (1.3 × 10⁻⁴ to 1333 mbar) :contentReference[oaicite:5]{index=5}
• Accuracy (N₂ gas):
  • 1 × 10⁻⁴ to 1 × 10⁻³ Torr: 0.1 mTorr resolution
  • 1 × 10⁻³ to 400 Torr: ±10 % of reading
  • 400 to 1000 Torr: ±2.5 % of reading

  :contentReference[oaicite:6]{index=6}

• Repeatability: ±2 % of reading :contentReference[oaicite:7]{index=7}
• Display: Bright OLED, 4-digit, selectable units (Torr, mTorr, mbar/bar, Pa) :contentReference[oaicite:8]{index=8}
• Outputs & Interfaces: Dual analog (linear, log-linear, S-curve), two SPDT relays (1 A @ 30 VDC), RS-232 & RS-485 serial :contentReference[oaicite:9]{index=9}
• Power: 11–30 V DC, ~2 W, protected against reversal & transients :contentReference[oaicite:10]{index=10}

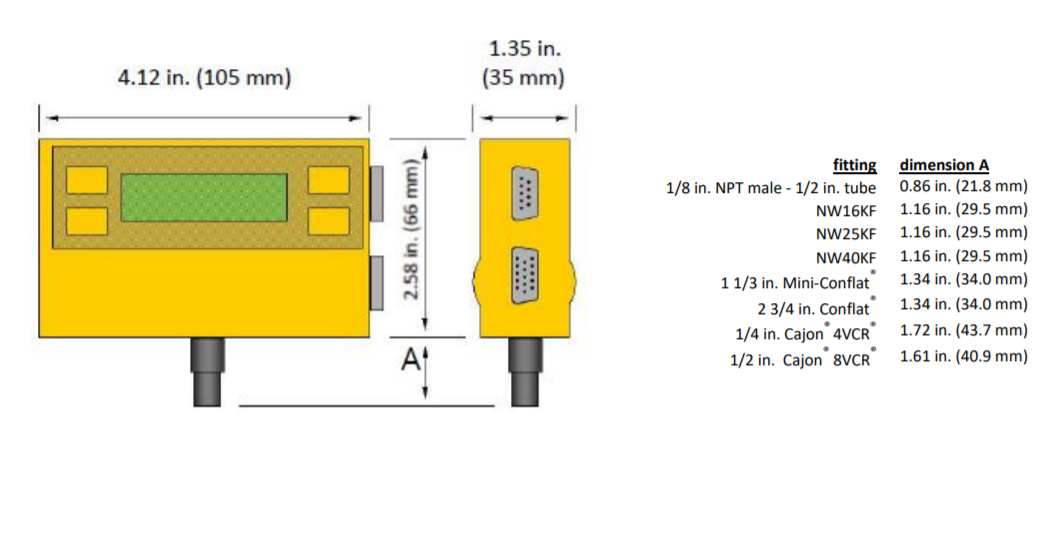

• Construction: Gold-plated tungsten sensor, 304/316 stainless steel, glass, nickel, Teflon—even with low internal volume (~26 cm³) and surface area (~59.7 cm²). :contentReference[oaicite:11]{index=11}
• Mounting Orientation: Horizontal recommended above 1 Torr; orientation has minimal effect below that. :contentReference[oaicite:12]{index=12}

Applications That Benefit Most

• Retrofitting Mini-Convectron® modules in coating systems, load-locks, or vacuum ovens.
• Vent sequencing, vacuum packaging, and rough-to-full-range monitoring in process environments.
• OEM systems requiring space-efficient yet feature-complete vacuum sensing.
• R&D platforms where multi-unit convenience and fast feedback boost productivity.

Integration & Installation Tips

• Plug-and-play upgrade: Drop into Mini-Convectron® slots using existing cabling and software.
• Use correct analog format: Select linear for raw scale, log-linear for decade-based systems, or S-curve for smooth control integration.
• Mount horizontally above 1 Torr: Ensures accuracy—below 1 Torr, orientation becomes less critical. :contentReference[oaicite:13]{index=13}
• Grounding matters: Common in convection modules—wire to chamber ground for safety and signal integrity. (Use standard vacuum grounding practices.)

Frequently Asked Questions

Can the Super Bee replace Mini-Convectron® gauges directly?

Yes—same D-sub pinouts, outputs, relays, and software interface. It’s designed as a drop-in, lower-cost, higher reliability replacement. :contentReference[oaicite:14]{index=14}

What’s special about “convection-enhanced” sensing?

Beyond standard Pirani, convection currents improve heat transfer at higher pressures, extending sensing from deep vacuum to atmosphere with one gauge. :contentReference[oaicite:15]{index=15}

Are analog outputs configurable?

Yes—you can choose between log-linear (1 V/decade), S-curve, or linear configurations to best suit your control systems. :contentReference[oaicite:16]{index=16}

Why High Vac Depot for the Super Bee?

High Vac Depot offers deep vacuum expertise, helping you choose between convection modules like the Super Bee and active gauges (e.g., Televac 4A or MX4A). We assist with selection, compatibility, and calibration to ensure smooth installation and uptime.

Interested? Get Help or a Quote Today

Need compatibility advice or pricing? Contact High Vac Depot—we’ll help configure the ideal gauge solution for your system.

{
“@context”:”https://schema.org”,
“@type”:”Product”,
“name”:”InstruTech Super Bee CVM201 Convection Vacuum Gauge Module”,
“brand”:{“@type”:”Brand”,”name”:”InstruTech”},
“category”:”Vacuum Gauge”,
“description”:”Convection-enhanced Pirani gauge module (Super Bee CVM201) measuring 1×10⁻⁴ to 1000 Torr, with OLED display, dual analog outputs, two setpoint relays, and RS-232/485—all built-in.”,
“offers”:{“@type”:”Offer”,”availability”:”https://schema.org/InStock”,”url”:”https://highvacdepot.com/product/instrutech-super-bee-cvm201-convection-gauge/”},
“additionalProperty”:[
{“@type”:”PropertyValue”,”name”:”Measurement Range”,”value”:”1×10⁻⁴ to 1000 Torr”},
{“@type”:”PropertyValue”,”name”:”Outputs”,”value”:”Dual analog, RS-232, RS-485″},
{“@type”:”PropertyValue”,”name”:”Setpoints”,”value”:”Two SPDT relays”},
{“@type”:”PropertyValue”,”name”:”Display”,”value”:”Built-in OLED”}
]
}

Additional information

Brand

InstruTech

InstruTech is a Colorado, USA based company specializing in the design and manufacture of vacuum measurement and control instrumentation.
