Edwards UltraGrade 15 Oil

Edwards UltraGrade 15 Oil

Edwards Ultra Grade 15 Vacuum Pump Oil, 1 liter (~1 Quart) H11026015

Description

Edwards Ultra Grade 15 Vacuum Pump Oil, 1 liter bottles H11026015

Edwards Ultra Grade 15 (sold here by the 1 liter bottles H11026015) is quality mechanical vacuum pump oil for the ultimate performance of your Edwards Rotary Vane pumps. Edwards Ultra Grade 15 is specially prepared by Edwards to meet the Rotary Vane exclusive specifications. We recommend that you change your vacuum pump oil at least every 3 months to prolong the life of your vacuum pump.

Designed for Edwards Rotary Vane Pumps:

E2M0.7, E2M1, E2M1.5, & E2M2

Edwards Ultragrade 15 Performance Oil, 1 litre bottle

Edwards – Mfr # H11026015 – Item # EW-79300-53
No ReviewsWrite the First Review
Outlet check valve
10-32 coned bottom to 1/4-28 (F) flat-bottom connections
1 year warranty

EDWARDS ULTRA GRADE 15 HYDROCARBON VACUUM PUMP OIL, 1 LITER, H11026015

New Edwards Ultra Grade 15 Hydrocarbon Vacuum Pump Oil, 1 Liter, H11026015
Features:
PN H11026015
Wide range of applications
Viscosity: 104.2 cSt @ 20 degrees C
Vapor Pressure: 5.8E-6 @ 20 degrees C

EDWARDS ULTRA GRADE 15 HYDROCARBON VACUUM PUMP OIL, 1 LITER, H11026015
ITEM#: PN15488 MFR PART#: H11026015 MANUFACTURER: EDWARDS VACUUM
Edwards Ultra Grade 15 Hydrocarbon Vacuum Pump Oil, 1 Liter, H11026015

Overview

Edwards Vacuum Ultra Grade 15 Hydrocarbon Vacuum Pump Oil.

Produced by hydrotreating, which eliminates nitrogen, sulphur providing a base free of impurities. The Edward ultragrade oild improve performance enabling the vacuum pump to withstand high temperatures.

For standard applications to pump down air, inert gases and noble gases.

Designed to be used with Edwards Vacuum Rotary Vane Pumps.

The Edward Vacuum Ultra Grade 15 Hydrocarbon Vacuum Pump Oil Uses:

Mass spectrometers

Electron microscopes

Thin film sputtering

Surface studies

UHV systems

Leak detection

Edwards Ultra Grade 15 Hydrocarbon Vacuum Pump Oil, 1 Liter, H11026015

Technical Data

Vapour pressure mbar:
20°C 5.8 x 10-6
100°C 3.0 x 10-2
Molecular weight 385
Specific gravity at 15°C 0.86
Viscosity cSt:
at 20°C 104.2
at 40°C 38.1
Pour point °C -18
Flash point °C 220
Auto ignition point °C 355
Sulphur content % mass/mass 0

Ideal Vacuum Products LLC Ultra Grade 15 Vacuum Pump Oil, 4 L

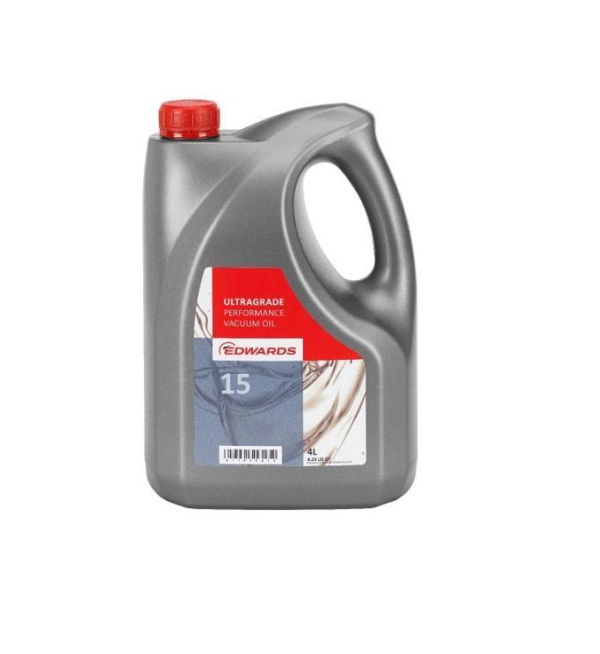

Edwards Ultragrade 15 – 4L – H11026013

Edwards Ultragrade 15 Vacuum Pump Oil – 4L – H11026013

Edwards Ultragrade 15 Oil is suitable for Edwards E2M0.7 & E2M1.5 Vacuum Pumps. They are also compatible with Busch Zebra, Rietschle V-CGA/VGC, Pfeiffer DUO Line & Leybold S Vacuum Pumps.

Edwards UltragradeTM Performance oils are designed for oil sealed vacuum pumps. Ultragrade oils are proven to succeed where others fail – this is the reason that many users who rely on vacuum exclusively recommend Ultragrade. Regardless of what make and model of vacuum pump you operate, you can benefit from selecting UltragradeTM as your oil of choice.

World leading solutions in vacuum pump lubrication
Finding the best oil for vacuum applications can be extremely challenging. Our Ultragrade Performance range takes things back to basics in order to deliver some of the most exceptional performance possible from a vacuum pump oil.
Ultragrade Performance base oils are refined without the uses of solvents for extreme purity. Next, they are combined with selected additives to provide a formulation resilient to the stresses of mechanical pumping. Finally, we blend oils to achieve a selection of viscosities so that they can be matched precisely to your pump and application.
We work with chemists in each technological field to challenge convention and deliver innovation. All of our lubricants are tested under laboratory conditions and are validated over thousands of hours of operation. As a result, we are able to offer oils that we are confident will enhance performance, extend life and save energy.

The best oil for vacuum
Colourless and odourless, Ultragrade Performance has been designed to be better, delivering exceptional benefits when used as a lubricant in oil sealed vacuum pumps. The specific formulation helps to inhibit corrosion and wear without loss of vacuum performance, enabling lubrication that is specifically
designed to work at, and achieve higher vacuum. The choice of blends available means that Ultragrade Performance is equally well suited to high vacuum or high pumping loads.

Item no.: H110-26-013

Vapor Pressure @ 20 deg C: 5.8 x10-6 mbar
Ultragrade 15
BOC Edwards oils, Ultragrade® 15 and 19 result from a new process which eliminates nitrogen, sulphur, oxygen and the aromatic hydrocarbons, leaving a clear base stock essentially free of impurities. When combined with additives, the Ultragrade® oils give improved vacuum performance, thermal and oxidation stability and rust inhibition. The anti-oxidants included in the oils enable the pump to withstand high operating temperatures without oil degradation, so extending intervals between oil changes.
The properties of the oils allow them to be used in a wide range of applications.
Viscosity @ 20 deg C: 104.2 mm²/s (cst)
Viscosity @ 40 deg C: 38.1 mm²/s (cst)
Pour Point: -18 deg C
Flash Point: 220 deg C
Fire Point: 355 deg C
Density: 0.86 g/ml

Edwards Vacuum H11026015, Oil, vacuum, Ultragrade 15, 1L

The ULTRAGRADE Performance oils give improved vacuum performance, thermal, oxidation stability and rust inhibition. The antioxidants included in the oils enable the pump to withstand high operating temperatures without oil degradation, so extending intervals between oil changes. The properties of the oils allow them to be used in a wide range of applications. New ULTRAGRADE Performance oils are the best choice for large pumps used in heavy-duty, cycling applications.

Tags: edwards vacuum, pump oil, Ultragrade, vacuum oil

Edwards offers a range of oils which result from a new process. Most manufacturers use a solvent refining process, whereas these oils are produced by a unique hydrotreating process. This process eliminates nitrogen, sulphur and oxygen and the aromatic hydrocarbons, leaving a clear base stock essentially free of impurities. When combined with additives, the Ultragrade™ Performance oils give improved vacuum performance, thermal and oxidation stability and rust inhibition.

When combined with additives, the oils give improved vacuum performance, thermal and oxidation stability and rust inhibition
Antioxidants included enable the pump to withstand high operating temperatures without oil degradation, so extending intervals between oil changes
Properties of the oils allow them to be used in a wide range of applications
The best choice for large pumps used in heavy-duty, cycling applications

Type ULTRAGRADE™ 15 ULTRAGRADE™ 19 ULTRAGRADE™ 70
Description Low viscosity general purpose lubricant, suitable for small pumps or cold start applications Most popular oil for rotary vane pumps, excellent lubrication and vapour pressure characteristics Medium/high viscosity oil, stable performance at higher stresses and temperatures
Vapour Pressure 5.8 x 10-6mbar @ 20°C 1 x 10-8mbar @ 20°C 2.1 x 10-7mbar @ 20°C
Uses Small rotary vane pumps (0.5-5m3/hr) where cold start capability or low starting torque is needed Small and medium size two stage rotary vane pumps where high ultimate vacuum and good lubrication are required Large capacity two stage rotary vane pumps especially when used under high load or fast duty cycles
Edwards Pumps E2M0.7, E2M1.5 E2M18, E2M28, RV3, RV5, RV8, RV12 E2M40, E2M80, E2M175, E2M275
Other Pump Types Busch Zebra, Rietschle V-CGA/VGC, Leybold S, Pfeiffer Uno Line Alcatel Adixen C1, Busch R5 ﹤40m3/hr, Rietschle V Series ﹤40m3/hr, Leybold Trivac, Pfeiffer DUO Line, Kinney KVA12-40 Busch R5 ﹤40m3/hr, Rietschle V Series RV pumps, Leybold Sogevac ﹤40m3/hr, Pfeiffer Hena Line, Kinney KVA 63-630

Edwards ULTRAGRADE 15 Performance Oil

Low vapour pressure, even at high temperatures
Resilience to the stresses of mechanical pumping
Edwards offers a range of new oils, ULTRAGRADE™ Performance 15, 19, 20 and 70, which result from a new process. Most manufacturers use a solvent refining process, whereas these oils are produced by a unique hydrotreating process. This process eliminates nitrogen, sulphur and oxygen and the aromatic hydrocarbons, leaving a clear base stock essentially free of impurities.

When combined with additives, the ULTRAGRADE™ Performance oils give improved vacuum performance, thermal and oxidation stability and rust inhibition. The anti-oxidants included in the oils enable the pump to withstand high operating temperatures without oil degradation, so extending intervals between oil changes.

The properties of the oils allow them to be used in a wide range of applications. New ULTRAGRADE™ Performance oils are the best choice for large pumps used in heavy-duty, cycling applications.

Ultragrade mineral oils

Edwards offers a range of mineral oils, Ultragrade 15, 19, 20 and 70, which result from a new process. Most manufacturers use a solvent refining process, whereas these oils are produced by a unique hydrotreating process. This process eliminates nitrogen, sulphur and oxygen and the aromatic hydrocarbons, leaving a clear base stock essentially free of impurities. When combined with additives, the Ultragrade oils give improved vacuum performance, thermal and oxidation stability and rust inhibition. The anti-oxidants included in the oils enable the pump to withstand high operating temperatures without oil degradation, so extending intervals between oil changes.

The properties of the oils allow them to be used in a wide range of applications. New Ultragrade 70 oils are the best choice for large pumps used in heavy-duty, cycling applications. Contact Edwards or your local supplier for detailed recommendations.

Additional information

Brand

Edwards

Edwards is a leading developer and manufacturer of sophisticated vacuum products, abatement solutions and related value-added services.

Edwards UltraGrade Performance Fluids and Lubrication
