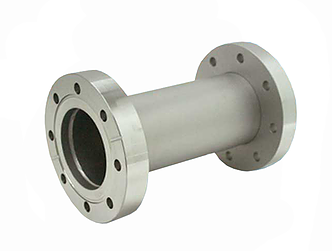

CF Full Nipple

Description
Additional information
Brand
Dimensions

Description

CF Full Nipples are made from SS304. They are rated to 450 Celsius and for UHV service. They utilize copper gaskets. One flange is fixed and the other is rotatable.

Additional information

Weight	N/A
CF Full Nipple	CF 1.33" x 76.2mm, CF 10" x 406.4mm, CF 2.12" x 104.1mm, CF 2.75" x 125mm, CF 3.38" x 163.6mm, CF 4.5" x 171.7mm, CF 4.62" x 179.3mm, CF 6.0" x 219.5mm, CF 6.75" x 214.9mm, CF 8" x 200mm

Brand

High Vac Depot

High Vac Depot provides practical vacuum solutions for your industrial or research process. Our goal is to provide a large selection of well-known vacuum products that suit your technical needs and budget.

CF Full Nipple Dimensions

Catalog Part #	Flange Size	A	B	C
		(in)	(in)	in [mm]
CF-FN-133	CF1.33”	1.33	1.33	3
				[76.20]
CF-FN-212	CF2.12”	2.12	2.12	4.1
				[104.14]
CF-FN-275	CF2.75”	2.75	2.75	4.92
				[124.97]
CF-FN-338	CF3.38”	3.38	3.38	6.44
				[163.58]
CF-FN-450	CF4.50”	4.5	4.5	6.76
				[171.70]
CF-FN-462	CF4.62”	4.62	4.62	7.06
				[179.32]
CF-FN-600	CF6.00”	6	6	8.64
				[219.46]
CF-FN-675	CF6.75”	6.75	6.75	8.46
				[214.90]
CF-FN-800	CF8.00”	8	8	7.87
				[200.00]
CF-FN-1000	CF10.00”	10	10	16
				[406.40]
