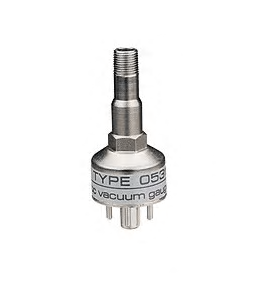

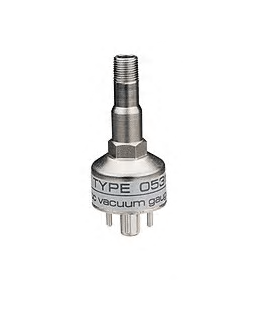

Agilent 531 Thermocouple Gauge Tube
Starting at: $116.22
Agilent 531 Thermocouple Gauge Tube
Ideally suited to your rough vacuum applications, the Agilent 531 Thermocouple Gauge Tube measures total pressures in the 1 x 10-3 torr to 2 torr absolute range. The 531 exhibits rapid response to pressure changes and is unaffected by mounting orientation. Two offerings for either mild steel or stainless steel 304. Both offered with 1/8″ NPT fitting.
- Description
- Additional information
- Brand
- Technical Specs

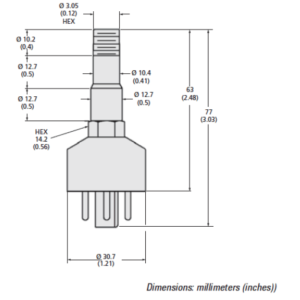

- Dimensions
Description
Agilent 531 Thermocouple Gauge Tube
Ideally suited to your rough vacuum applications, the Agilent 531 Thermocouple Gauge Tube measures total pressures in the 1 x 10-3 torr to 2 torr absolute range. The 531 exhibits rapid response to pressure changes and is unaffected by mounting orientation. Two offerings for either mild steel or stainless steel 304. Both offered with 1/8″ NPT fitting.
Additional information
| Weight | N/A |
|---|---|
| Agilent 531 TC Gauge |
Brand
Agilent
Agilent delivers complete scientific solutions, helping customers achieve superior outcomes in their labs, clinics, business and the world they seek to improve.
| Measurement range | 1 x 10-3 Torr to atmosphere 1 x 10-1 to 133 Pascal |
| Temperature limits | Operating: 0 to 50˚ C Storage: -15 to 80˚ C Bake out: 150˚ C with cable disconnected |
| Pressure response time | Less than 3 seconds |
