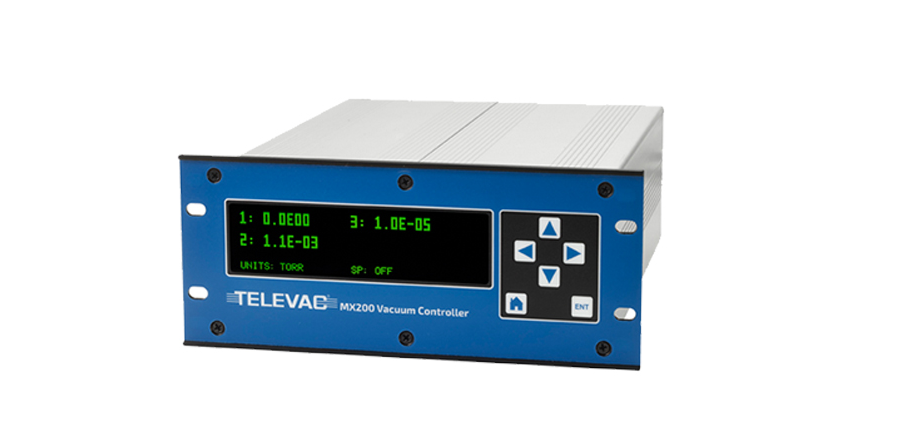

Televac MX200 Gauge Controller

The Televac MX200 vacuum controller (also called a vacuum control unit or vacuum pressure controller) can be connected to up to 10 Televac passive vacuum gauges including cold cathode gauges, convection gauges, diaphragm gauges, and thermocouple vacuum gauges. It also includes 0 to 10 V DC analog outputs for each vacuum gauge connected to the vacuum controller, RS-232/RS-485/USB digital communications for simple integration with a PC or PLC, and up to 8 optional set point relays to act as a vacuum pressure controller for process control in your vacuum system.

The MX200 vacuum controller’s user interface includes six touch controls and a high contrast, 180° viewing angle OLED display, which shows measurements from up to 8 connected vacuum gauges simultaneously along with the selected units of measurement and the status of set point relays. This vacuum control unit supports multiple gas types including nitrogen/air, argon, hydrogen, helium, neon, krypton, and carbon dioxide. The MX200 vacuum controller is a modular unit, allowing you to choose a vacuum sensing solution specific to your needs.

Choose between USB/RS232/RS485 or USB/Ethernet Connectivity.

Note, this is for the base unit only. Click on the “Accessories” tab to select the gauge modules required.
